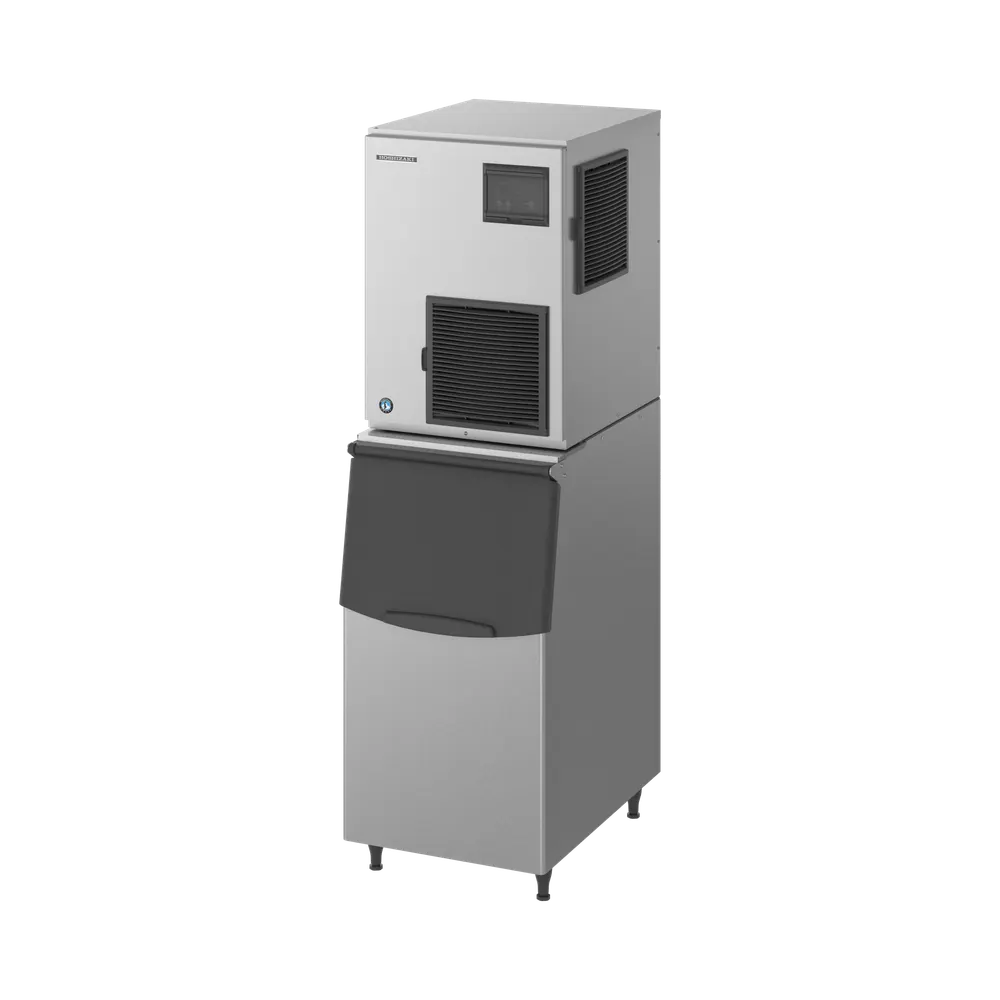

Hoshizaki 330KG NUGGET ICE MAKER - MODULAR - FM-480AKE-HCN-SB

Name: Hoshizaki 330KG NUGGET ICE MAKER - MODULAR - FM-480AKE-HCN-SB
Brand: Hoshizaki
SKU: FM-480AKE-HCN-SB
Price: 9949 AUD

·✓ Verified Commercial Feedback

330KG NUGGET ICE MAKER - MODULAR (model FM-480AKE-HCN-SB). 560 x 700 x 780 mm.

$9,949 AUD

Includes 10% Australian GST ($904 GST)

Trade Discount Price:On application

SilverChef Rent-Try-Buy (100% Tax Deductible):From $159 AUD / week

Availability on request· Contact us for stock levels and delivery times

Call 1300 858 290

Delivery Lead Time & Cost Estimator

Australia-Wide

Hoshizaki 330KG NUGGET ICE MAKER - MODULAR - FM-480AKE-HCN-SB Engineering Data

Tested to Australian MEPS and HACCP food safety standards.

ModelFM-480AKE-HCN-SB

ManufacturerHoshizaki

TYPE OF ICENugget

PRODUCTION CONFIGURATIONModular

PRODUCTION CAPACITY (KG/24H)330

Product TypeIce Maker

Production Capacity per 24hoursApprox. 380kg @10°C Air temp; 10°C Water Approx. 330kg @ 21°C Air temp; 15°C Water Approx. 270kg @ 32°C Air temp; 21°C Water

Width560mm

Depth700mm

Height780mm

Weight Net92kg

Packed Weight99kg

CoolingAir

AC Supply Voltage1 PHASE 220-240V 50Hz/ 10 AMP Plug

AmperageRunning: 5.6A Rated Motor: 5.6A Starting: 27A

Refrigerant ChargeR290 / 145g

Operating ConditionsAmbient Temp.: 5-40°C Water Supply Temp.: 5-35°C Water Supply Pressure: 0.05-0.8MPa (0.5 - 8bar) Voltage Range: Rated Voltage ±6%

Electric Consumption1170W

Water Consumption Per 24hApprox. 0.380m³ @10°C Air temp; 10°C Water Approx. 0.330m³ @ 21°C Air temp; 15°C Water Approx. 0.270m³ @ 32°C Air temp; 21°C Water

Electrical Circuit Breaker Protection5A

Heat Rejection (AT 32°C, WT 21°C)2190W

Accessories IncludedInstallation kit

Refrigerant GasR290
