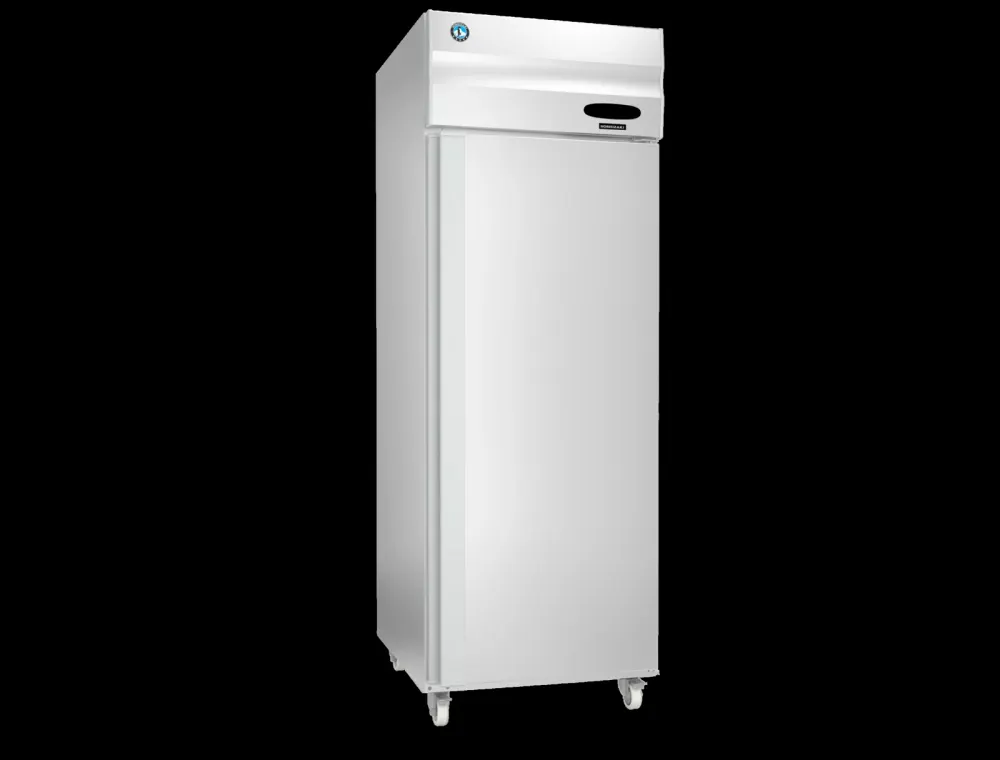

Front View
Interior Rails
Plinth Airflow
Digital Controller
Dimensions700x881x2024mm
Gross Volume628 Litres
Operating Temp-18 to -22°C
HoshizakiModel: HF-77-GNSKU: HF-77-GN
Hoshizaki 628L Gastronorm Freezer 1 Door - HF-77-GN
·✓ Verified Commercial Feedback
628L Gastronorm Freezer 1 Door (model HF-77-GN). 628 L, 700 x 881 x 2024 mm, -18 to -22°C.
$4,868 AUD
Includes 10% Australian GST ($443 GST)
Trade Discount Price:On application
SilverChef Rent-Try-Buy (100% Tax Deductible):From $78 AUD / week
Availability on request· Contact us for stock levels and delivery times
Delivery Lead Time & Cost Estimator

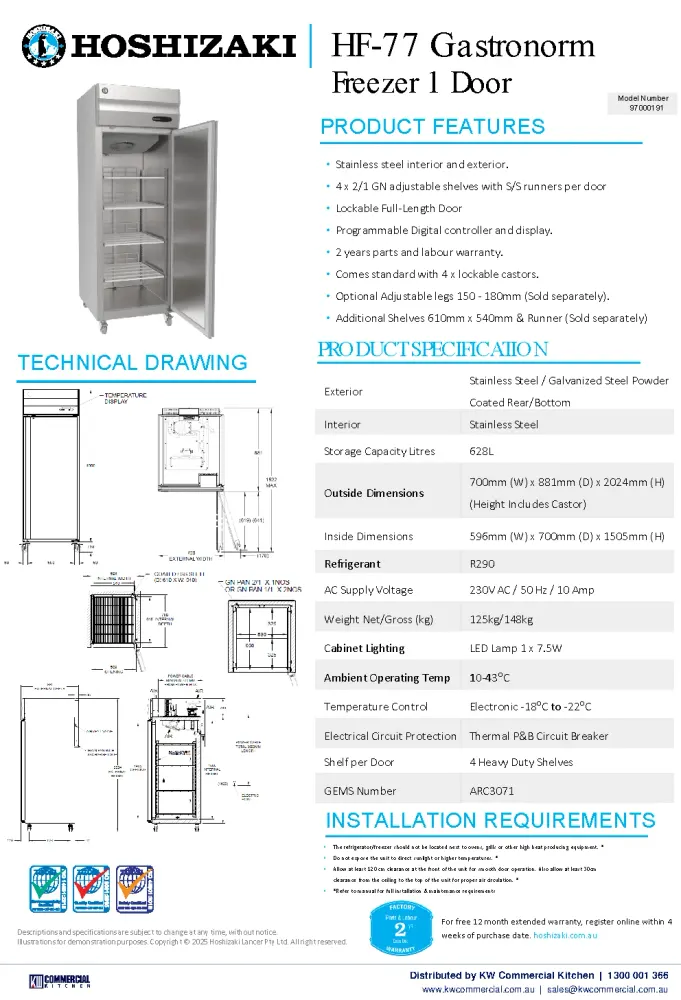

Australia-WideHoshizaki 628L Gastronorm Freezer 1 Door - HF-77-GN Engineering Data
Tested to Australian MEPS and HACCP food safety standards.
ModelHF-77-GN
ManufacturerHoshizaki
Product TypeUpright
Net Usable Volume (LTR)628
Doors/Drawers1 Door
Temperture Range-18 to -22°C
RefrigerantR290/74g
InteriorStainless Steel
ExteriorStainless steel, Galvanized Steel Powder Coated Rear/Bottom
Max Storage Capacity628
Temperature ControlElectronic Adjustable Refrigerator: -18°C to -22°C
EvaporatorFin & Tube type
Outside Dimensions Width700
Outside Dimensions Depth881
Outside Dimensions Height2024 (Includes Castors)
Inside Dimensions Width596
Inside Dimensions Depth700
Inside Dimensions Height1505
Weight Net117
Packed Weight140
Refrigeration SystemForced Air Circulation
AC Supply Voltage230V AC / 50 Hz / 10 Amp
AmperageRated: 4.9A Starting: 15.6A
Operating ConditionsAmbient Temp.: 10-43°C Voltage Range: Rated Voltage ±6%
Electrical consumption700W, Heater 474W, Defrost 474W
Installation Kits95001013 Adjustable Leg 95002993 Adjustable Leg 79001076 Castor Grey 180mm (each)
Included Factory Features:
R290/74g refrigerant
Forced Air Circulation
Electronic temperature control
